SONOFF Zigbee Bridge Ultra, ZigBee 3.0, Wi-Fi, RJ-45, Matter
SONOFF smart home system allows you to control your electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create different scenarios, group appliances by switching on/off multiple devices with a single touch, set timers and schedules, monitor the status of your devices in real time, and share their control. Thanks to configurable local LAN support Sonoff smart home system can work without a cloud server.

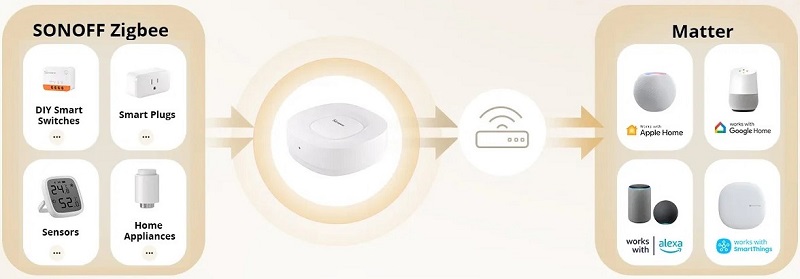

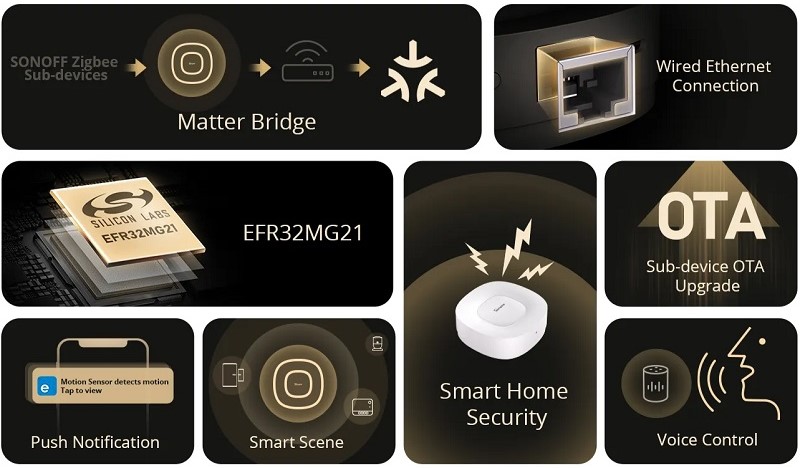

Features:SONOFF Zigbee Bridge Ultra is updated ZigBee bridge, it is designed to communicate data between Zigbee and Wi-Fi devices to realize smart control and extend the network range. ZB Bridge-U allows you to connect up to 256 Sonoff or eWeLink Zigbee sub-devices, supports sub-device OTA upgrade, features powerful configuration, 1.5GHz dual-core processor, 1GB DDR4 and 8GB eMMC memory, and the distance range reaches up to 200m.One of the newly added features is smart home security. More than a hub in your smart home, it is also an alarmer. Set a scene to realize one tap to defense by NFC triggered, wireless button pressed, or app remote control. And you will hear the beep and get the notification push when the event happens. For example, when a Zigbee motion, smoke or door/window sensor is triggered, the ZB Bridge-U sends security alarm with buzzer and to the eWeLink app.Another new feature is local smart scene, for ZigBee devices. It is possible to set the Zigbee devices to automatically turn on or off when the relevant sensors are triggered (for example, video cameras or lights will turn on when motion or door/window sensors are triggered, or fans will turn on when a certain temperature in the room is reached, and so on).The local smart scene always works well even Wi-Fi is disconnected. The device is friendly to Apple users. Through Matter's integration with Apple Home, you can easily access home automation via your iPhone, iPad or smartwatch.Voice control with Amazon Alexa, Google Assistant, Apple Siri or Samsung SmartThings is supported.Housing material is made from non-flame retardant PC plastic with V0 safety class.Note: Local scene is for Zigbee devices only.
Technical specifications:Compatible with: Sonoff SNZB-01, SNZB-02, SNZB-03, SNZB-04, SNZB-02D, SNZB-01P, SNZB-02P, SNZB-03P, SNZB-04P, SNZB-05P, SNZB-06P, ZBMINI, ZBMINIL2, ZBMicro, S26ZB, TRV, S31 Lite ZB, S40ZB, etc.Number of supported Zigbee devices: up to 256.CPU: 1.5GHz, dual core.Chip: EFR32MG21+RV1109.DDR4: 1Gb, eMMC 8Gb.Wireless: Zigbee 3.0 (IEEE802.15.4), 2.4GHz.Wi-Fi standard: IEEE802.11b/g/n, 2.4GHz.Input voltage: DC 5V (1A).Input interface: USB Type-C.Network interface: RJ45 (10/100Mbps).Works with Matter, Amazon Alexa, Google Assistant, Google Home, Apple Home, Siri, Smarthings.App: eWeLink (Android, iOS).Body material: PC, ABS.Operating temperature: -10°C~+40°C.Operating humidity: 5%-95% (non-condensing).Dimensions: 82x82x28 mm.Weight: 92.5g.Color: white.Certificates: CE/ FCC/ ISED/ ROHS, EN 62368-1.
Included: network cable 1m, USB Type-A to USB Type-C power cable 1m.
Warranty: 24 months.
