Sonoff ZBMINIL2 smart switch, Zigbee 3.0
The SONOFF smart home system allows you to control electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create various scenarios, group devices by turning on / off several devices in your home with one touch, set the desired timers and schedules, monitor the status of your home and devices in real time, share their control. Sonoff smart home system devices have a built-in ability to operate on a local LAN without a cloud server.
Features:

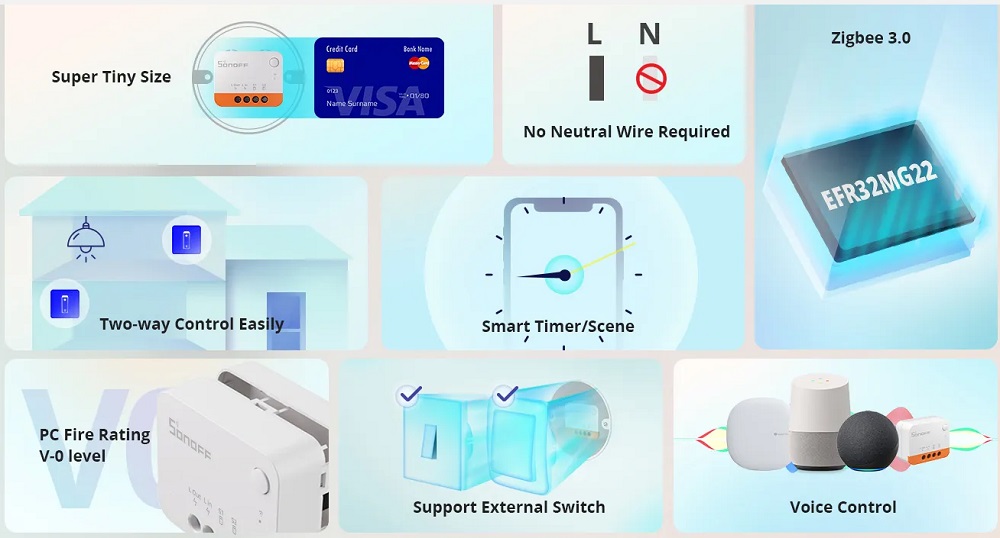

Sonoff ZBMINIL2 is designed to turn your existing wall switch into a smart one. It is a single channel relay module that does not require a neutral wire. It works with different types of external switches to control your devices, such as lever light switch, push button wall switch, etc.
Also called Sonoff ZBMINI Extreme, this switch is one of the smallest Zigbee smart relays, suitable for even the smallest EU-type/86-type/120-type mounting boxes.
The smart switch is easy to attach and control remotely with a smart device using the eWeLink mobile app (Android, IOS) when connected to a Zigbee hub. It is also compatible with the SmartThings central, in which case it can be controlled using the SmartThings app (Android, IOS).

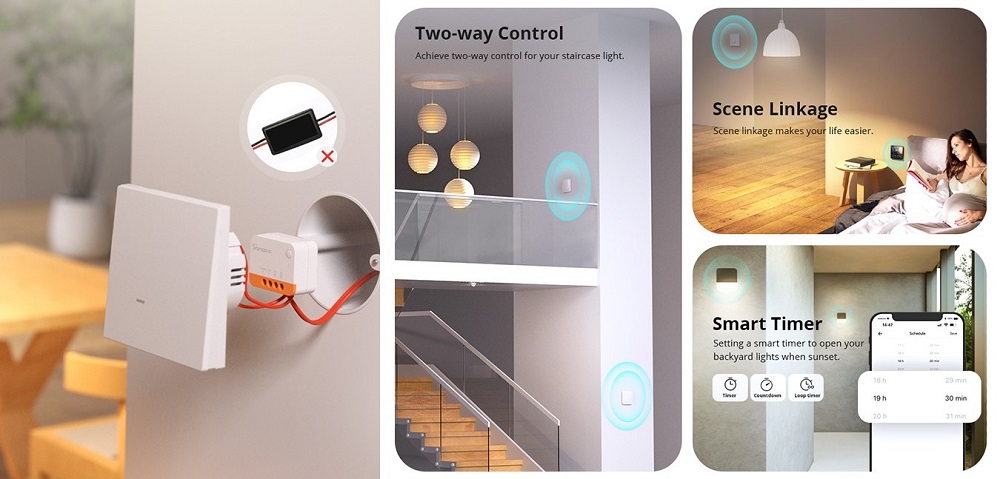

By connecting a pair of two-way switches, it is possible to turn on/off the light at the bottom of the stairs from the top of the stairs and vice versa.
Voice control via Google Assistant or Amazon Alexa.

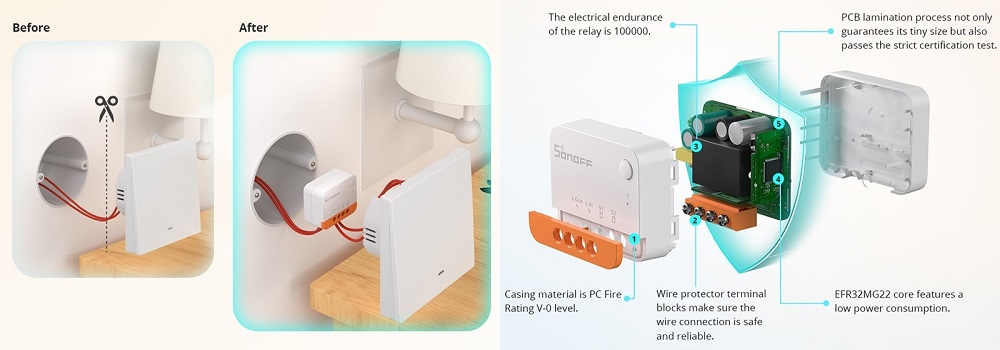

Easy installation and management. The small and compact switch is easy to fit.
Made of PC fireproof plastic, class V0.
This switch can be combined with various other products to complete smart home scenarios.
Notes:
The switch does not support an inductive load such as a fan.
The switch does not support dimmable LED bulb/light.
The power of the light must be more than 3W.
The device requires a ZigBee control unit to operate.
Technical data:
Compatibility: Sonoff NSPanel Pro, ZBBridge, ZBBridge Pro, ZBDongle-P, ZBDongle-E; Amazon Alexa Echo Speaker; SmartThings Hub.
Wireless: Zigbee 3.0 (IEEE802.15.4).
Voltage: AC 100~240V.
Current max.: 6A.
Frequency: 50-60Hz.
Number of channels: 1.
Works with Amazon Alexa, Google Assistant, Alice.
App: eWeLink (Android, iOS).
Dimensions: 39.5x32x18.4mm.
Body material: PC V0 (non-flammable).
Operating temperature: -10°C~40°C.
Installation: in the mounting box.
Weight: 22g.
Warranty: 24 months.
