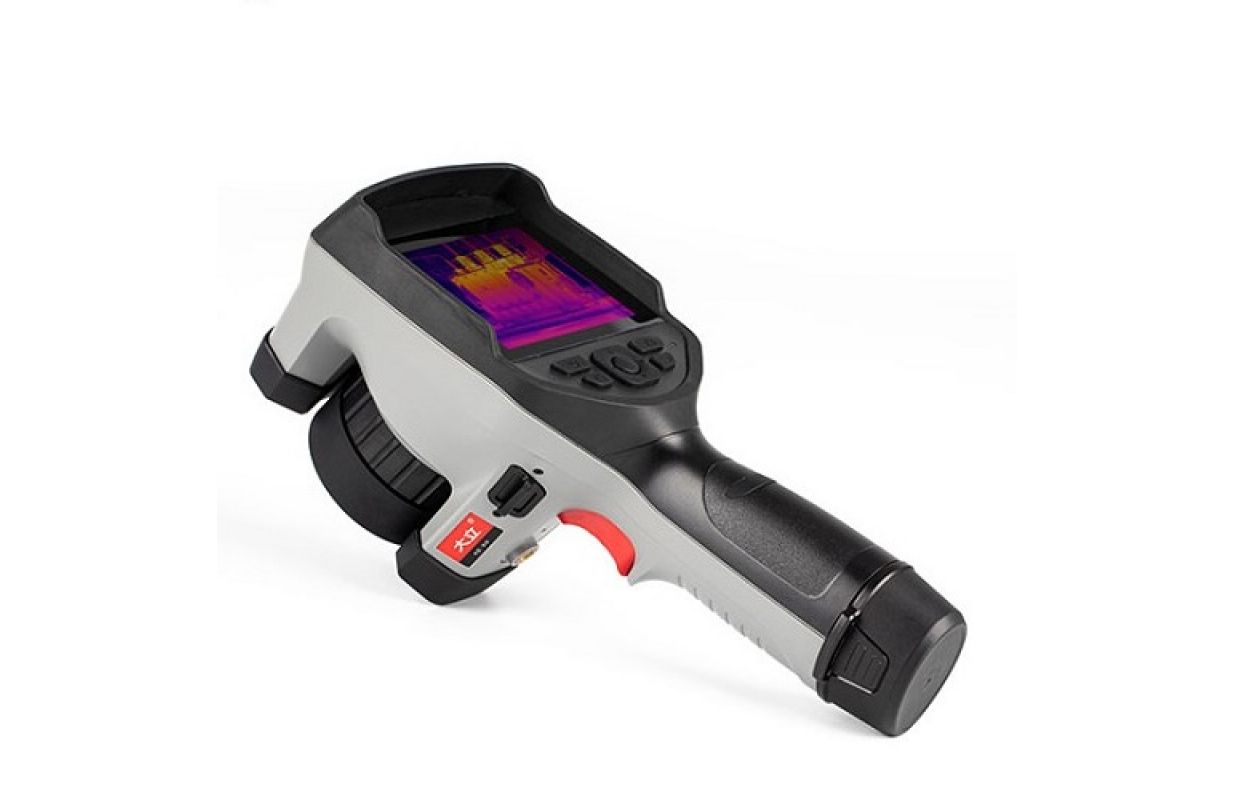

Thermal Imager 640x480, 25°x19°, LRF, 4X Dzoom, IP54, Display, WiFi, BT, HDMI (T10-M)

Thermal imager 640x480, 25°x19°, LRF, 4X Dzoom, IP54, Display, WiFi, BT, HDMI
 Features: Professional ergonomic thermal imager with digital video camera. The 640x480 pixel resolution sensor allows you to get high image quality with 1280x960 superpixel resolution. Field of view 25°x19°. 4x digital zoom. Color screen with a resolution of 640x480 pixels. Visible light camera 500 MP resolution, 2 LEDs. Real-time 4 movable points (the hottest and coldest points are independent), 3 movable areas (the highest temperature, the lowest temperature capture, average temperature measurement), line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color). The minimum focal length of 10 cm and the narrow FOV of the standard lens allow accurate determination of the temperature of small objects at a distance. The spatial resolution - 0.67 mrad provides temperature measurement accuracy at a greater distance. Flexible focusing - manual, electric or automatic. High-speed automatic adjustment allows you to see temperature changes in dynamics. The thermal imager instantly adapts to the ambient temperature and ensures the accuracy of readings. Sudden changes in temperature will not interfere with your work. The Super Pixel feature is a software double upscaling of the infrared sensor to 1280 x 960. Two main temperature measurement ranges from -20° to +180°C and from +100° to +650°C and an additional mode even up to +1200°C. Quick detection of hot objects ("Hot spot") - when this mode is activated, the hottest object in the field of view is displayed. Laser Range Finder (LRF) helps you quickly and accurately capture the distance and automatically zoom. This range finder can be set to continuously display the changing distance to the object being observed. The digital compass built into the thermal imager improves tracking accuracy. The PIP (picture in picture) feature is a 2x magnified picture on top of the screen that helps zoom in on the target while maintaining the field of view on the overall screen. With photo and video functions. Live broadcast or data transfer via Wi-Fi to smart devices (phone, tablet, laptop) is supported, via App, images saved on the TF card can be analyzed when creating reports. Professional software is included. Long 4 hours lithium-ion battery life, which can be extended by charging via an external battery or via a mini USB - USB type-C cable (which is also designed for fast data transfer). HDMI video output. The 1/4" screw hole allows for mounting on racks or other devices that are attached with a standard 1/4" screw. IP54 protection ensures resistance to dust and splashes. Robust industrial design, light weight, resistance to vibration, shocks and falling from a height of 2m.
 Technical data: Detector resolution: 640x480. Detector Type: Uncooled focal plane micro-thermal FPA. Field of View (FOV): 25°x19°. Spatial resolution (IFOV): 0.67 mrad. Wavelength: 8-14 microns (micrometers). Thermal sensor sensitivity (NETD at 30°C): Warranty: 24 months.
