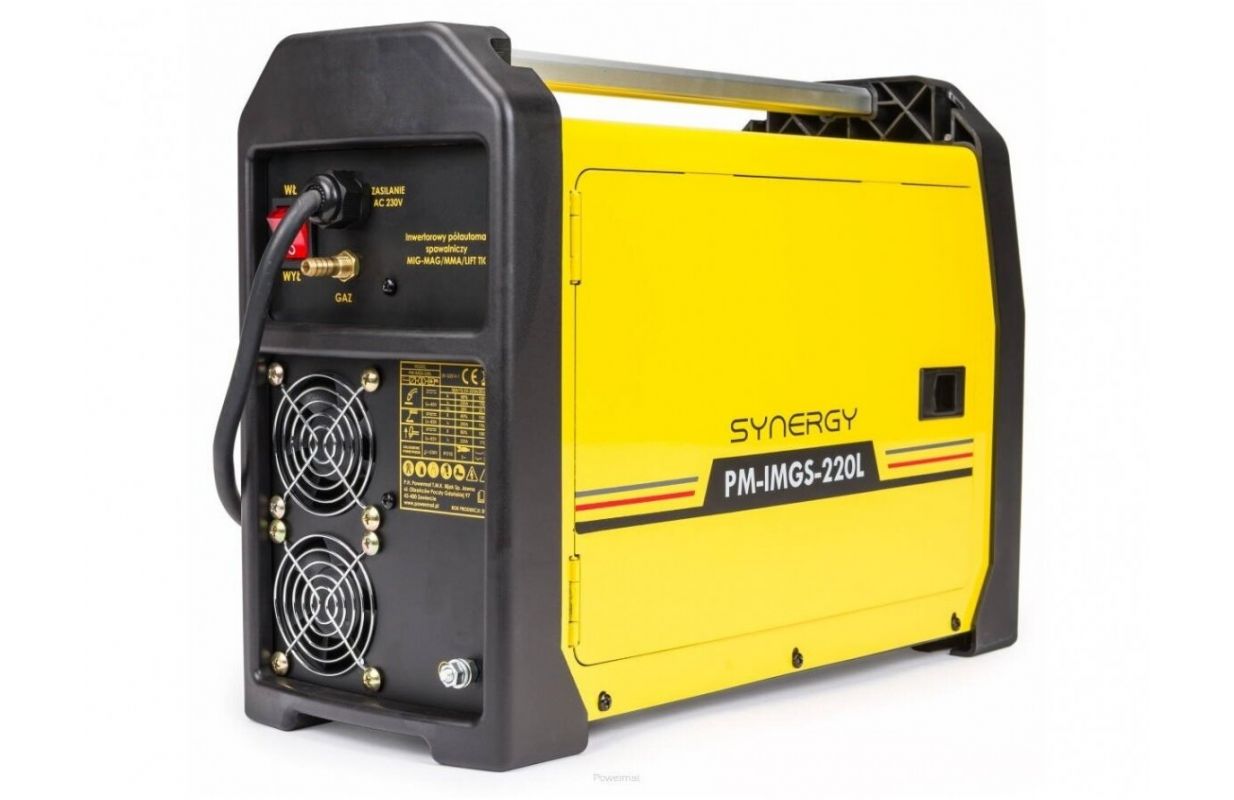

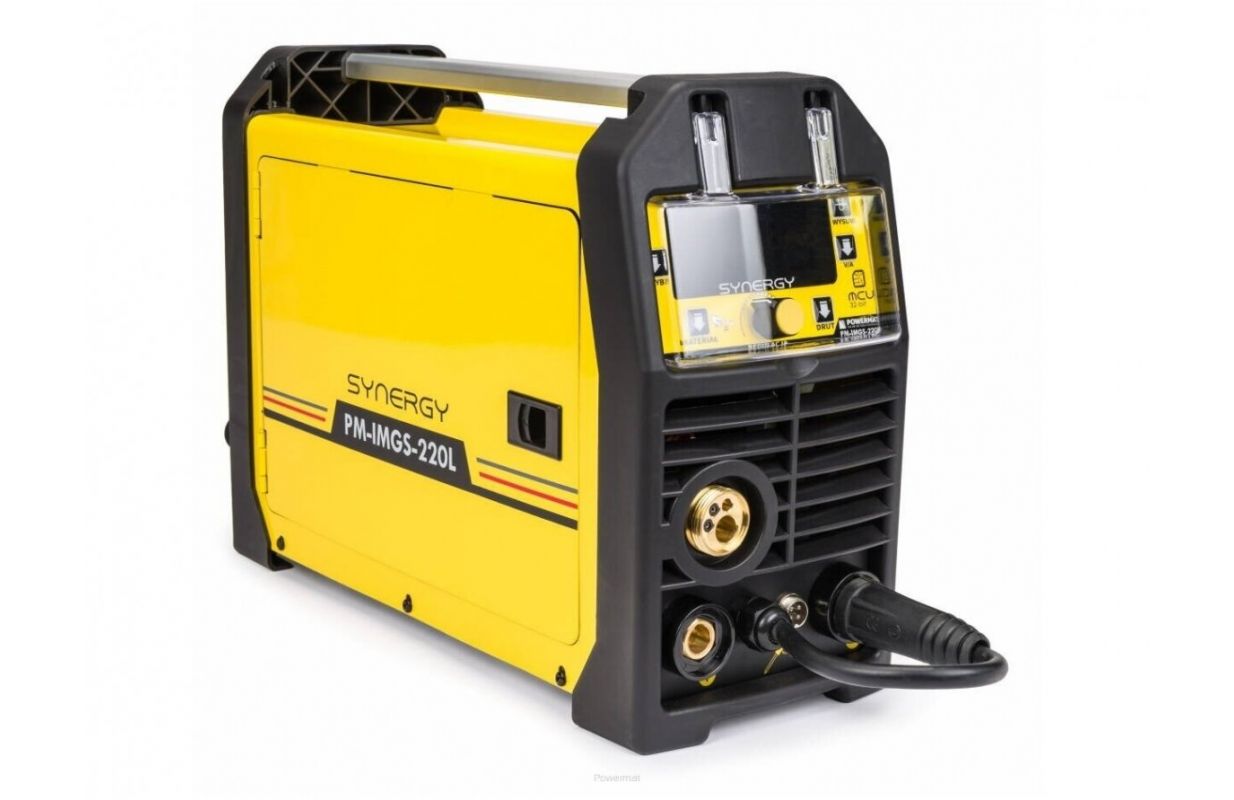

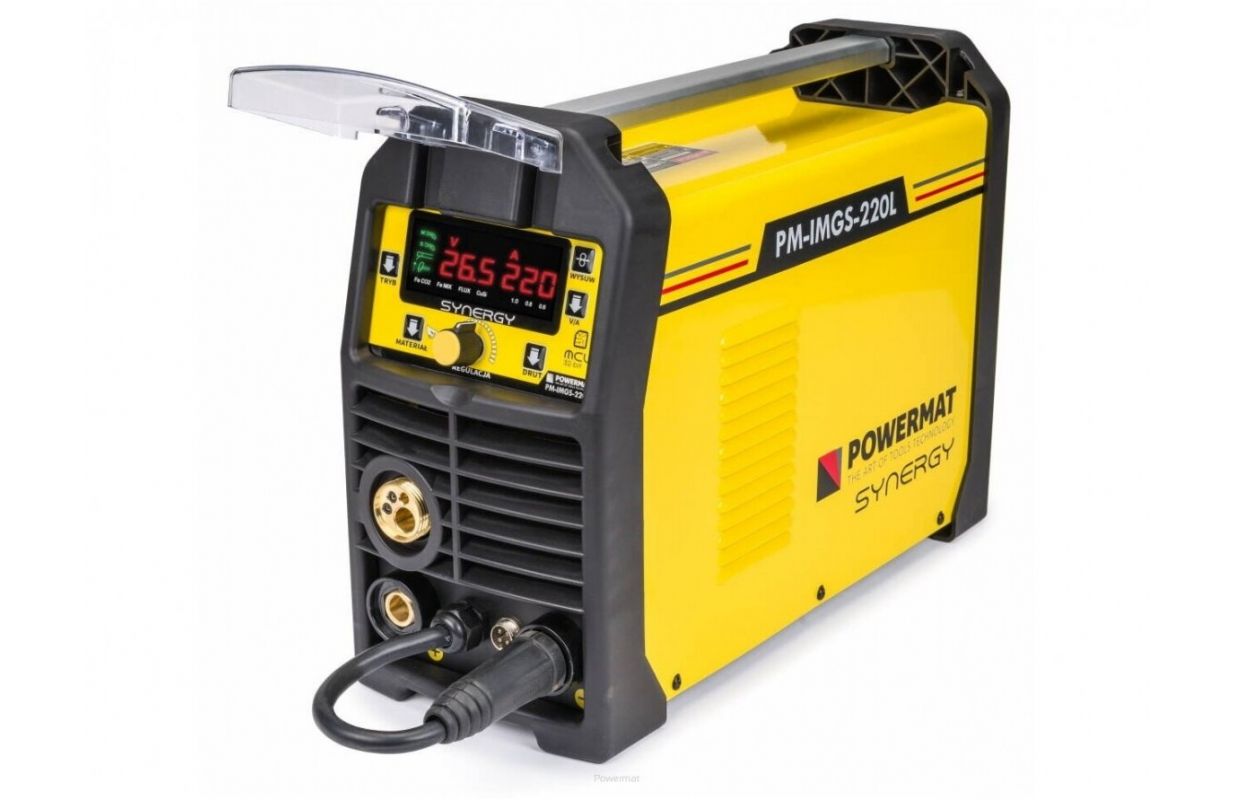

Welding semi-automatic POWERMAT SYNERGY, 220A, 230V (PM-IMGS-220L)

Manufacturer: POWERMAT

Power Supply Voltage

230 V / 50 Hz

Power Consumption MIG / MAG

6.1 kVA

Power Consumption TIG / MMA

5.8 kVA

Welding Methods

MIG / MAG / MMA / LIFT-TIG

MIG / MAG Welding Current Range

30 - 220A

MMA Welding Current Range

20 - 200 A

MIG / MAG Welding Current at 100% Duty Cycle

170A

MIG / MAG Welding Current at 60% Duty Cycle

220A

Welding Voltage

12.5 - 30 V

Operating Modes 2T / 4T

yes

Welding Wire Diameter

0.6 / 0.8 / 1.0 mm

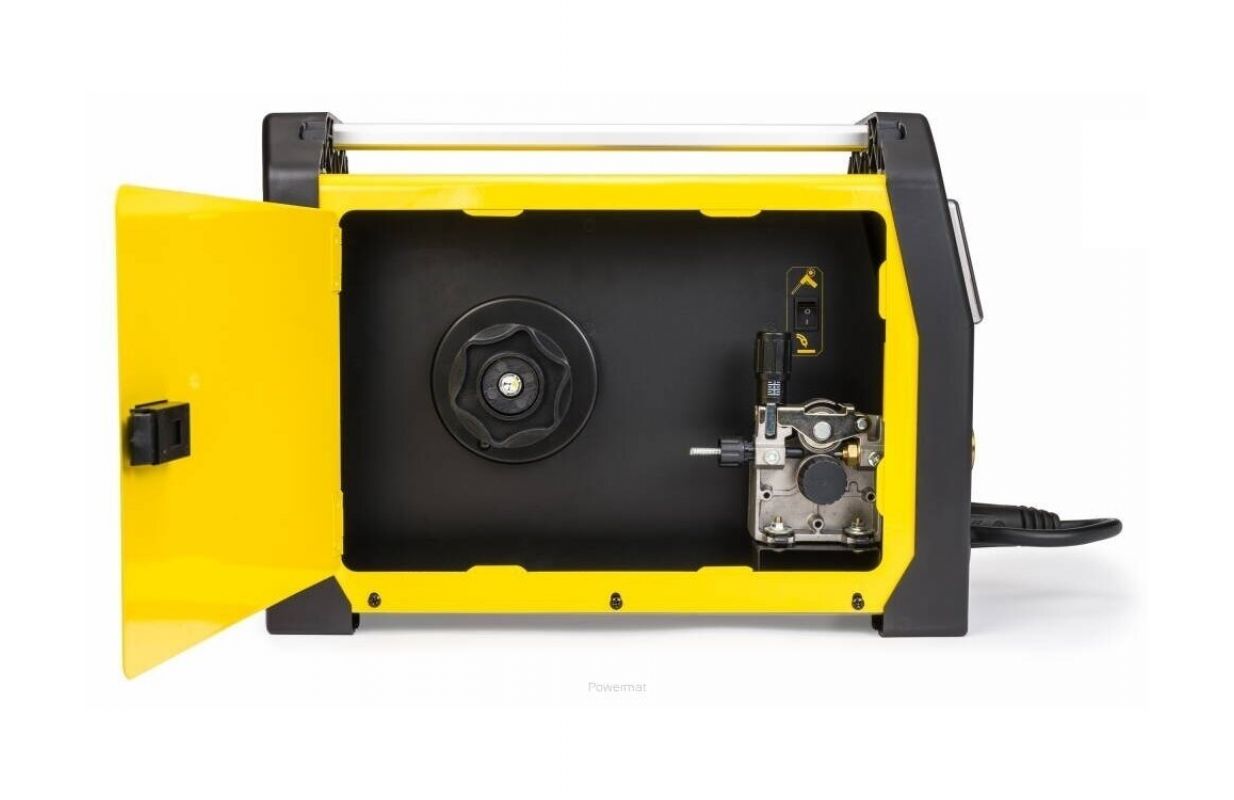

Welding Wire Spool

up to 5 kg

Electrode Diameter

1.6 mm - 4 mm

Insulation Class

F

Protection Degree

IP21S

Welding Inductance Adjustment

-10 - 10

Dimensions

600 x 290 x 620 mm

Weight

9.75 kg

The PM-IMGS-220L welding semi-automatic machine is a widely used welding device that allows for effective welding of various groups of materials of different thicknesses. The IGBT technology used in production ensures reduced energy consumption, increased resistance to interference and voltage fluctuations, as well as good arc characteristics. Additionally, IGBT technology makes the machine lightweight and compact. The welding current is very stable, ensuring flawless welding. The efficiency of the device reaches 60%.

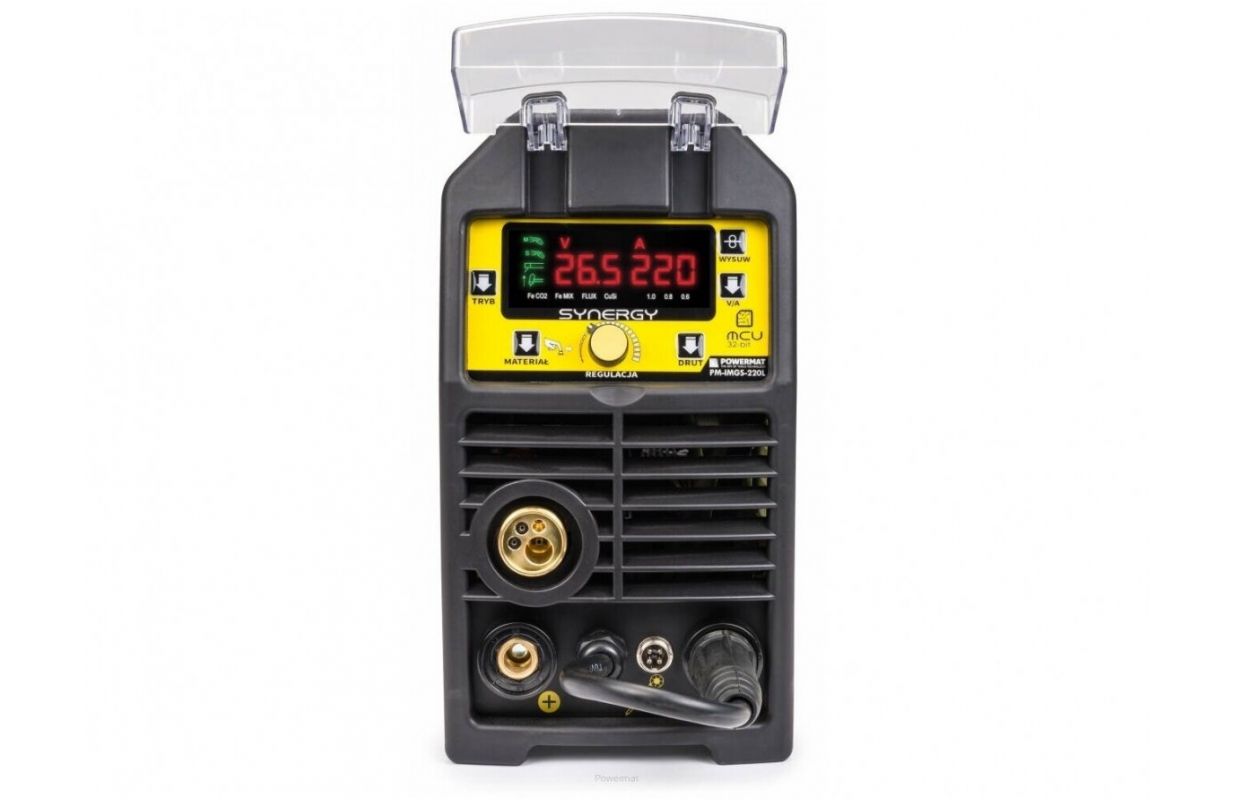

The control panel is easy to use, allowing the operator to quickly access all necessary functions. The welding semi-automatic machine has synchronous functions, enabling the highest quality welding when working with any materials, especially stainless steel and aluminum. The device features a compact and mobile design, making it convenient to transport to the required work location.

The welding machine has the following features that facilitate the welder's work:

• Hot Start - allows temporarily increasing the welding current above the value set by the welder. This function facilitates arc ignition.
• Anti Stick - interrupts/reduces the welding voltage and current in case of a short circuit between the electrode and the material being welded. This function prevents the electrode from sticking.
• Arc Force - stabilizes the arc regardless of its length. If the value of this function is reduced, it provides a soft arc and less penetration depth, while increasing the value gives deeper penetration and a shorter arc. At the highest value of the Arc Force function, it is possible to "push" the electrode into the molten metal pool and burn through the material. This model has automatic Arc Force adjustment.
• VRD - a voltage reduction system designed to cut off power within milliseconds after welding. This function is also responsible for reducing the safe voltage of the electrode.
• The RIN function - limits the wire feed speed before the welding process begins. It automatically turns off during welding.
• The ARL function in synergy mode allows manual adjustment of the arc length and the appearance of the weld seam.

Features of the welding machine:

• Ability to set 2T/4T operating modes.
• Inductance control - allows reducing the amount of heat entering the welding zone. This prevents deformation of the metal sheet and damage to the protective zinc layer.
• In synchronous mode, the material type selection function will select the necessary welding parameters to facilitate work.
• BurnBack adjustment.

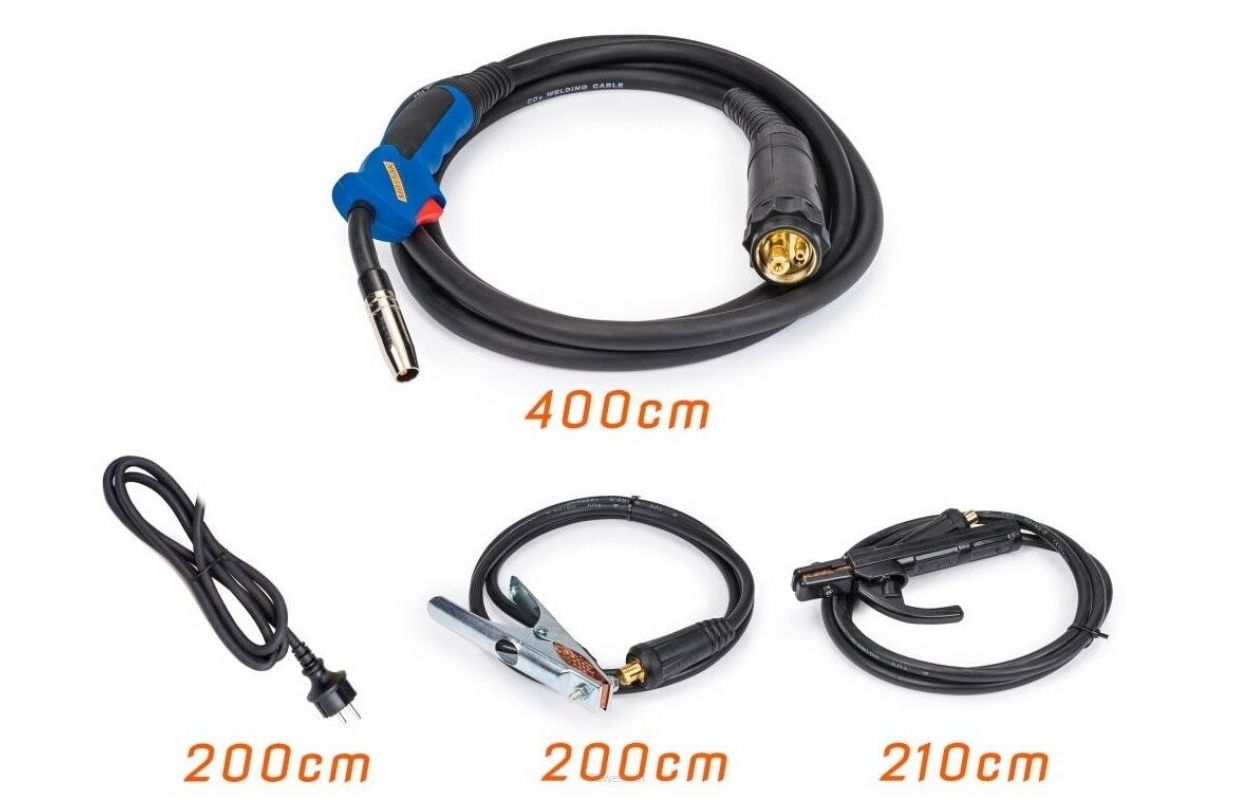

Included are:

• Ground cable (-), 2 m
• Electrode holder (+), 2.1 m
• EURO MIG / MAG torch, 4 m
• Duplex roller 0.8 / 1.0 mm, type U
• Nozzles 2x 0.8 / 1.0 mm
• Universal wrench
