Concrete drill 2500W DED7622 (DED7622)

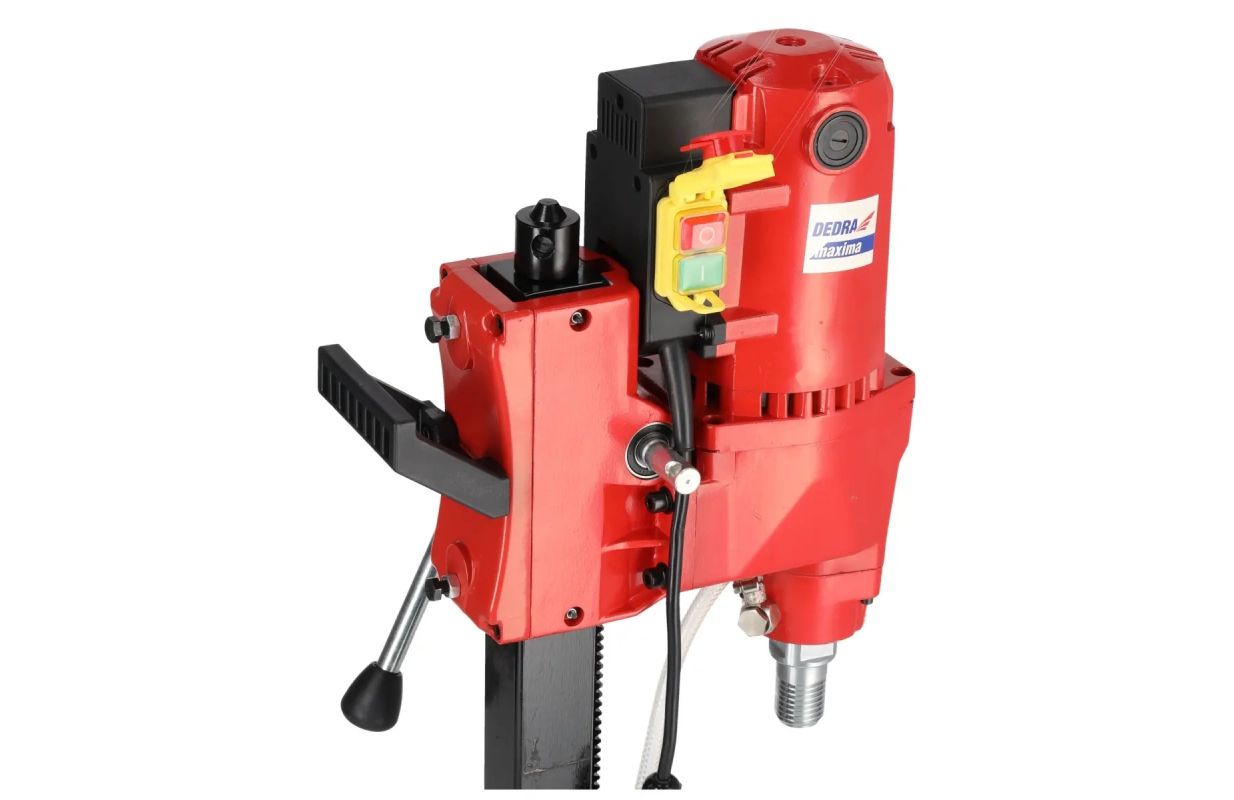

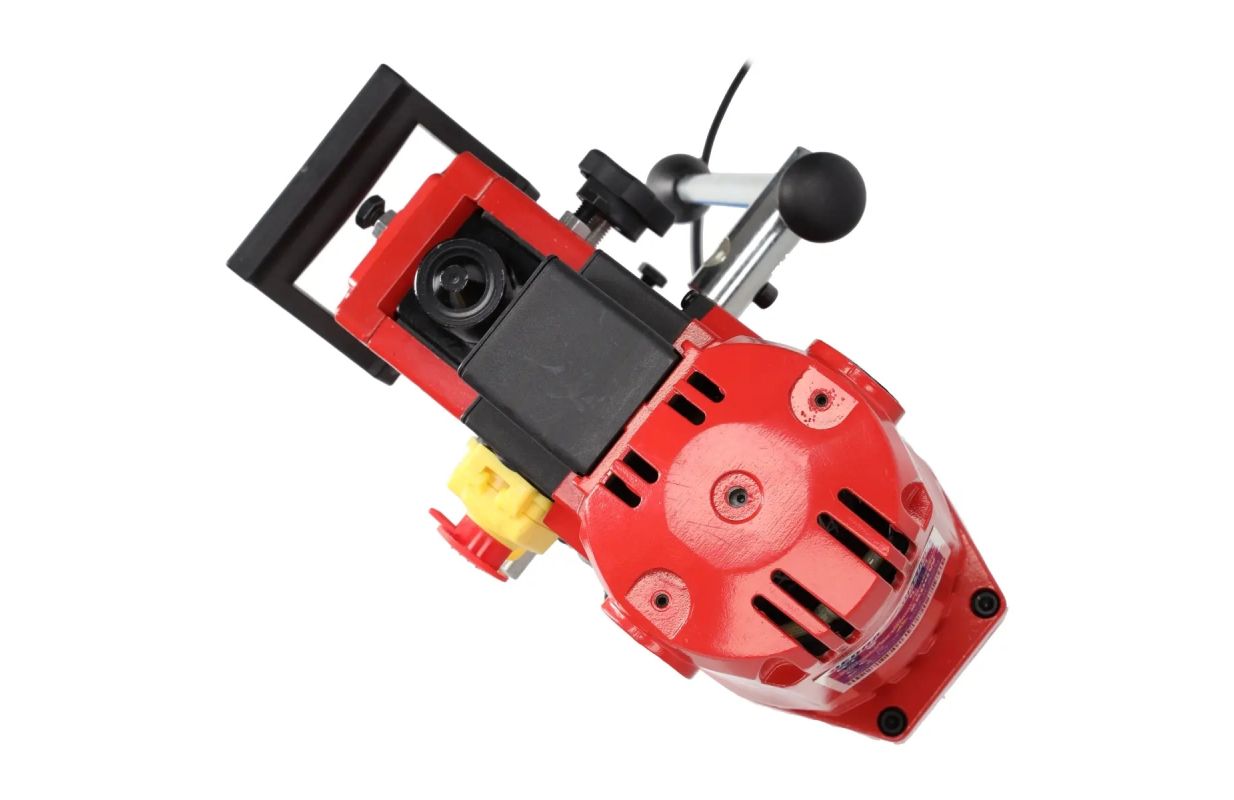

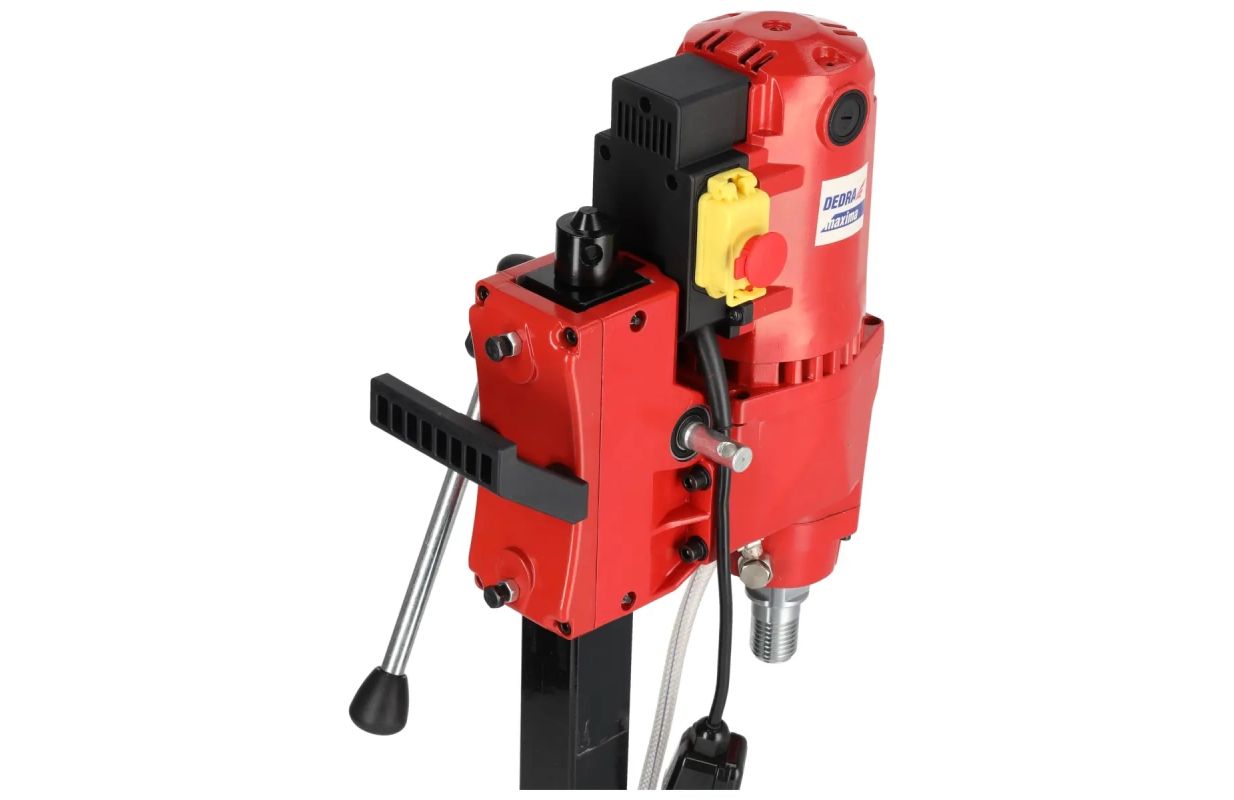

The DED7622 concrete drill is a device designed for non-impact drilling with diamond core bits, using the wet drilling method. The tool can be used for drilling in walls, concrete, reinforced concrete, ferroconcrete, or stone. The drill is adapted for use with a stand, which should be anchored to the ground beforehand. The DED7622 model is equipped with a single-speed transmission, ensuring an optimal rotational speed for the selected diamond core bit. The device is designed to work with core bits ranging from 80 to 205 mm. The core bits are mounted on a 1 ¼'' threaded spindle. An integrated water dosing system allows for effective cooling of the core bits and minimizes dust during drilling.

Features of the DED7622 concrete drill:

• Water dosing system
• Universal 1 ¼'' core bit mounting

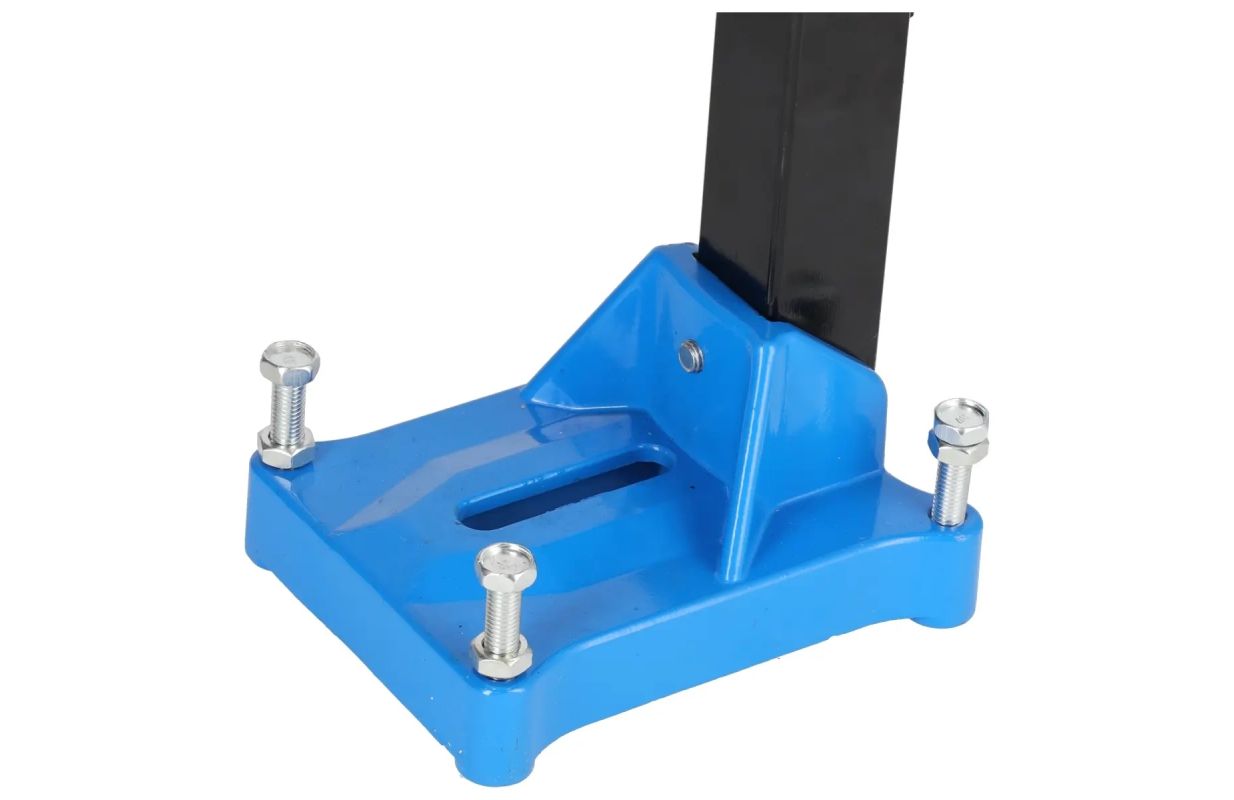

• Stand allowing anchoring to the ground
• Quick-change system for electrographic brushes

Technical data of the DED7622 concrete drill:

• Voltage: 230V
• Frequency: 50 Hz
• Motor power: 2500W
• Number of speeds: 1
• Rotational speed: 700 RPM
• Clearance on the stand: 450 mm
• Travel on the stand: 450 mm
• Drilling diameter range: 80-205 mm
• Mounting thread diameter: 1 ¼''
• Protection rating: IP20
• Weight: 23.8 kg

Set includes:

• Drill with stand, base, and drill holder
• Feed lever arm
• Lever arm nut
• Allen wrench
• Open-end wrench
• Set of electrographic brushes
