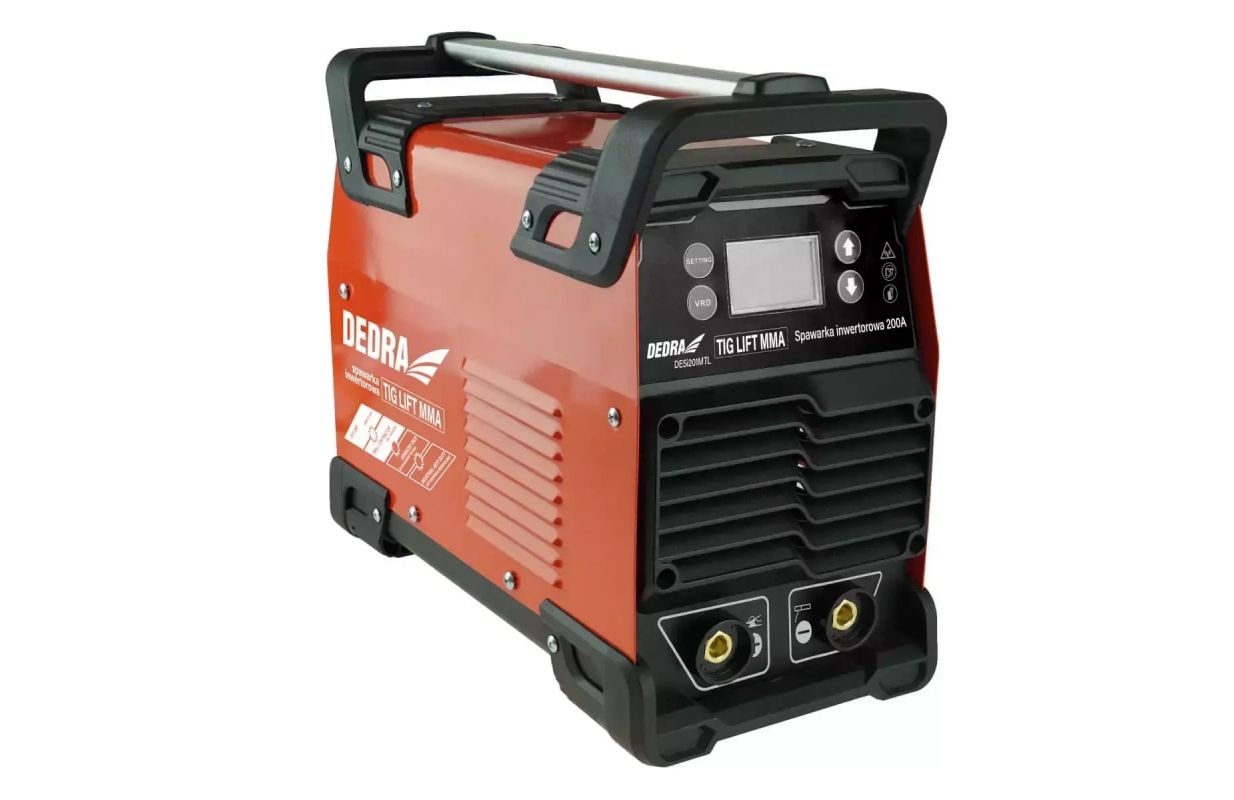

Inverter welding machine, LCD Display DESI201MTL (DESI201MTL)

The DEDRA DESI201MTL inverter welding machine is designed for MMA arc welding with a maximum diameter of 4 mm and a maximum weldingcurrent of 200A.

The machine can be used to weld materials such as alloy steels, structural steels and cast irons. The machine uses IGBT welding technology and therefore achieves high performance with small dimensions and low weight. In addition, the machine has the possibility of TIG welding owing to the TIG LIFT handle. The LCD display is easy to read and intuitive to operate. The convenient handle and compact size make it easy to transport and store. The welder is suitablefor DIY enthusiasts as well as more advanced users with their own workshops.

Features:

• HOT START - a system which increases the current during arc ignition
• ANTI STICK - anti-electrode sticking system
• ARC FORCE - welding current increase in the beginning, system for regulating arc dynamics and stability
• IGBT technology
• Welding current adjustment
• LCD display
• Small size and low weight
• Welder equipped with thermal protection and a fan to prevent overheating
• Adapted for use with a generator

Technical data:

• Power supply: 230V
• Protection level: IP21S
• Required safety current: 16A
• Maximum electrode diameter: 4mm
• Maximum welding current: 200A
• Welding current adjustment range: 20-200A
• Cooling system: fan
• Length of the power cord: 2m

Included:

• Welding cable 2m with electrode holder
• Ground cable 1,5m with a clamp
• Protective mask
• Brush
