DIGITAL MULTIMETER (81774)

Product description

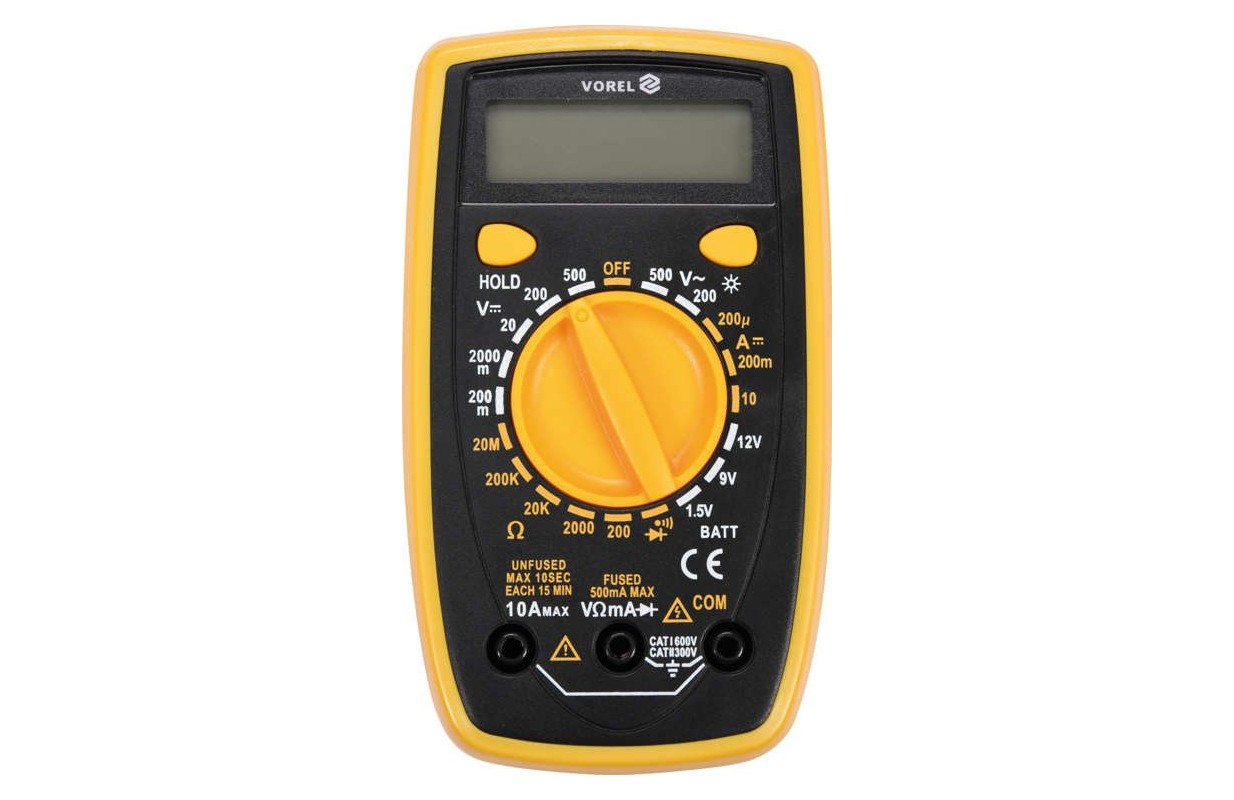

Multifunctional digital meter with adjustable display brand VOREL 81774. The digital meter is particularly useful in diagnosing and detecting defective components of electrical installations. It allows measuring: alternating voltage: U a.c. 200V / 500V
DC voltage: U d.c. 200mV / 2V / 20V / 200V / 500V
direct current: I d.c. 200 μA, 200 mA, 10 A
resistance: R 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 20 MΩ
battery test: 1.5 V, 9 V, 12 V
diode test: IF 1 mA, UR 1.5 V
the audible signal allows easy verification of the continuity of the circuit.

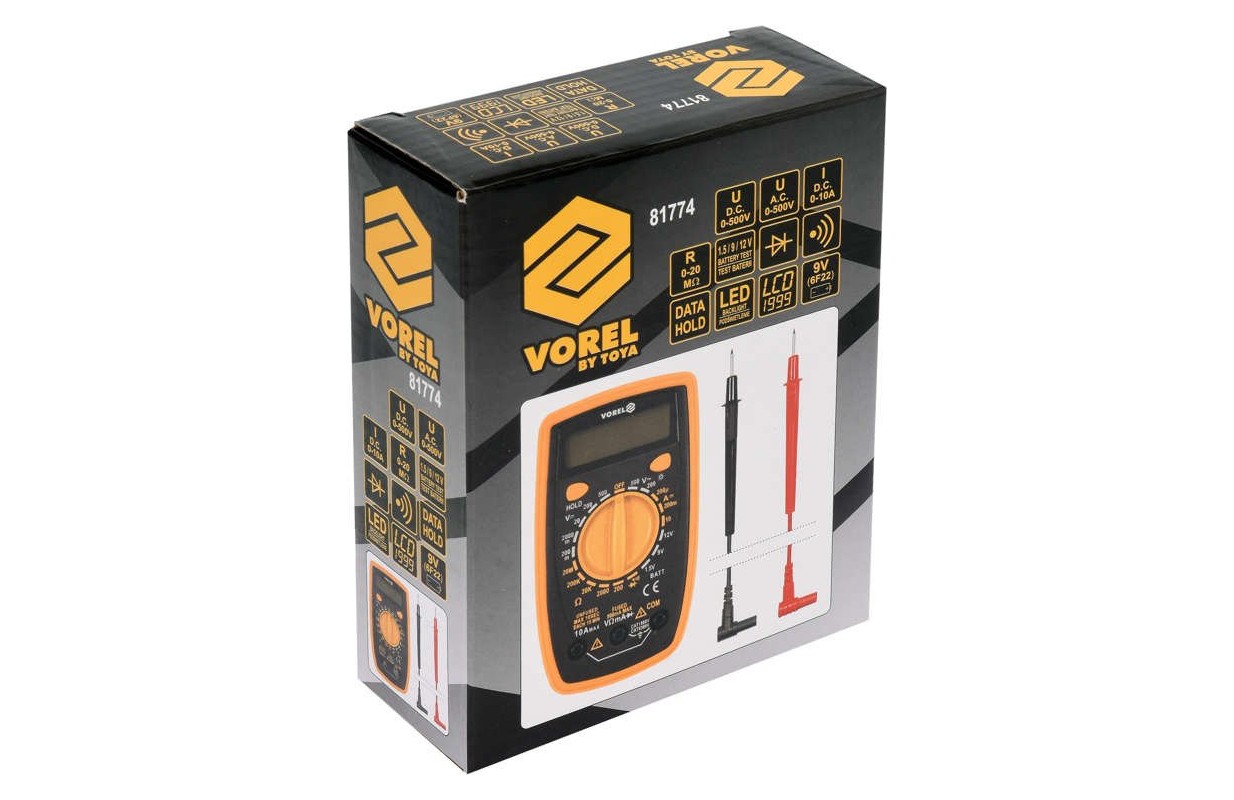

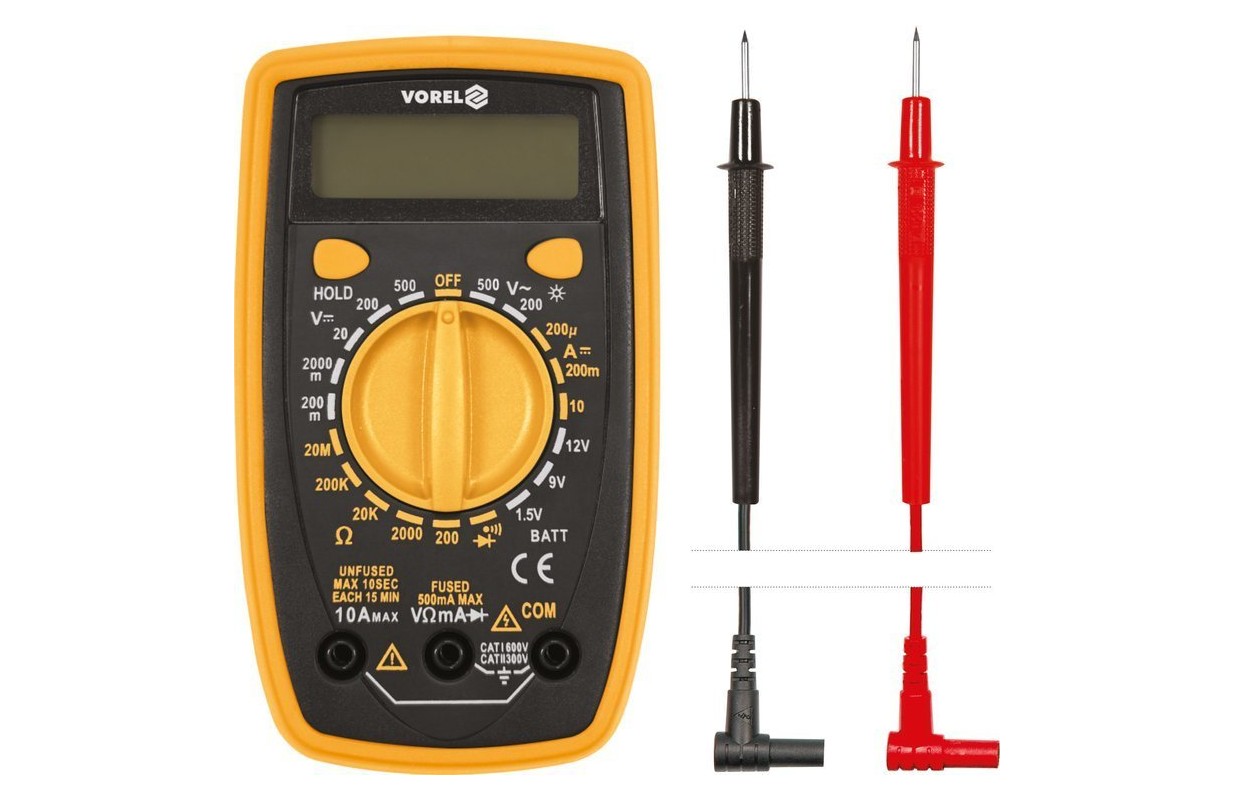

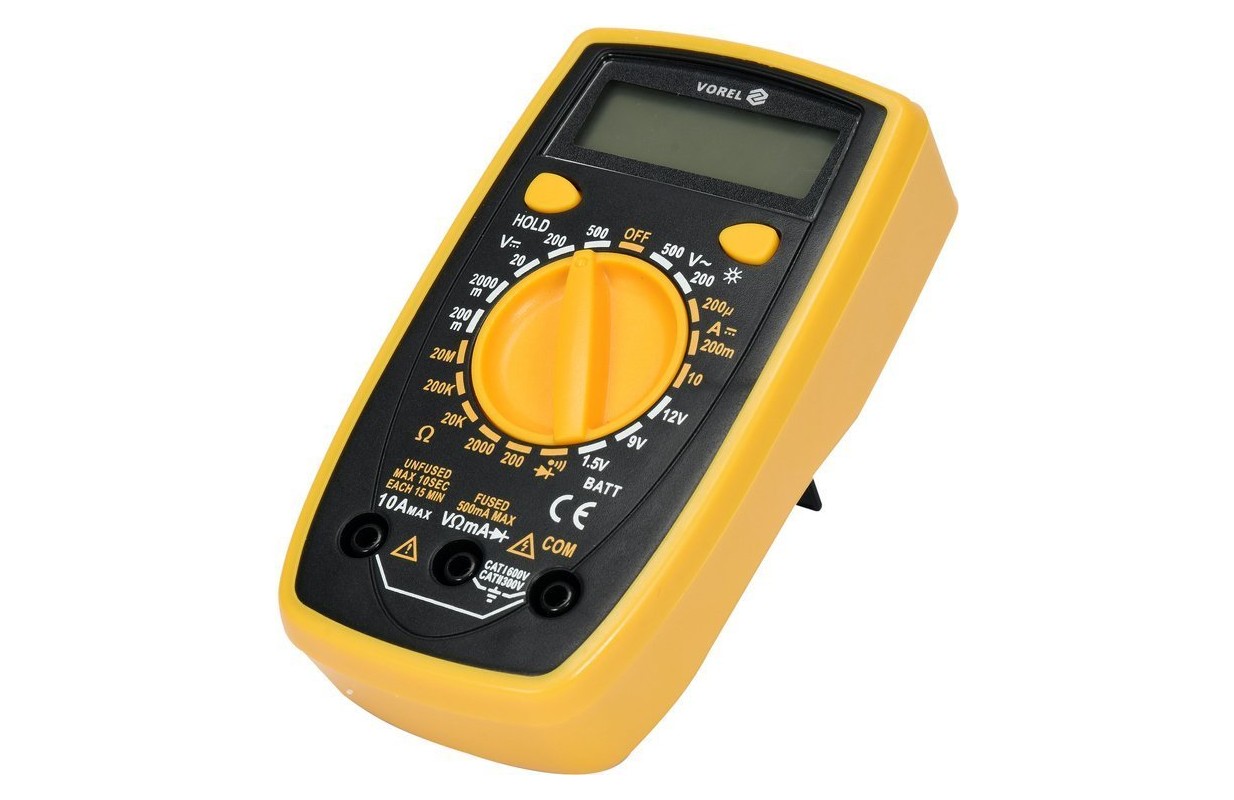

The VOREL 81774 multimeter displays a LCD display that allows displaying the maximum result of 1999. Its unique advantage is the possibility of illuminating the display in blue, which makes it much easier to read the measured parameters in darker rooms. In addition, the DATA HOLD function allows you to keep the currently measured value on the display. The meter is powered by a 9V battery (6F22). Aesthetically made rubber housing primarily protects it against mechanical damage, and at the same time increases the comfort of use. In addition, there is a pull-out support at the back that allows you to position it in a position that makes reading data easier. The set includes test leads. Technical data
Index number 81774
EAN 5906083042591
Brand Vorel
Measurement of alternating voltage 0-500V
DC voltage measurement 0-500V
Resistance measurement 0-20M OHM
Constant current 0-10A
Circuit continuity test YES
Diode test YES
