Tank capacity
6 l
Power
0.75 HP
550 W
Maximum pressure
0.8 / 0.8 / 116 MPa/bar/PSI
Efficiency
107 l/min
Revolutions
1450 min⁻¹
Voltage
230 V AC
Frequency
50 Hz
Short-circuit current
15 A
Load current
2.5 A
Type
oil-free
Oil
NO
Manometer
Yes
Class of electrical insulation
I
Degree of protection
IPX0
Sound pressure level
57.1 ± 2.36 dB(A)
Acoustic power
78.1 ± 2.36 dB(A)
Weight
14.5 kg
Contents
compressor, quick connection

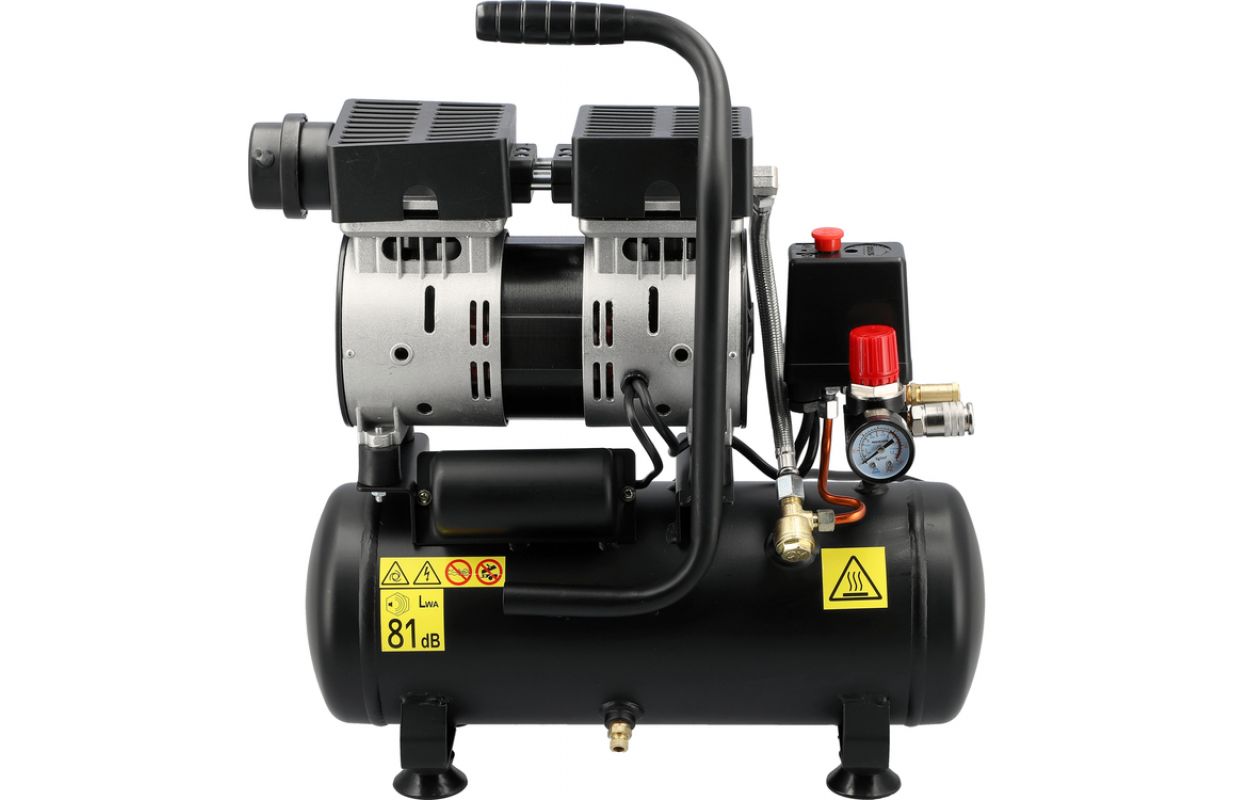

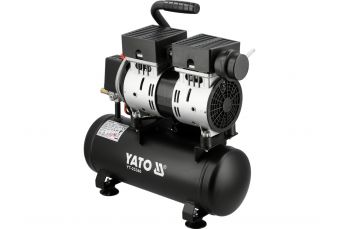

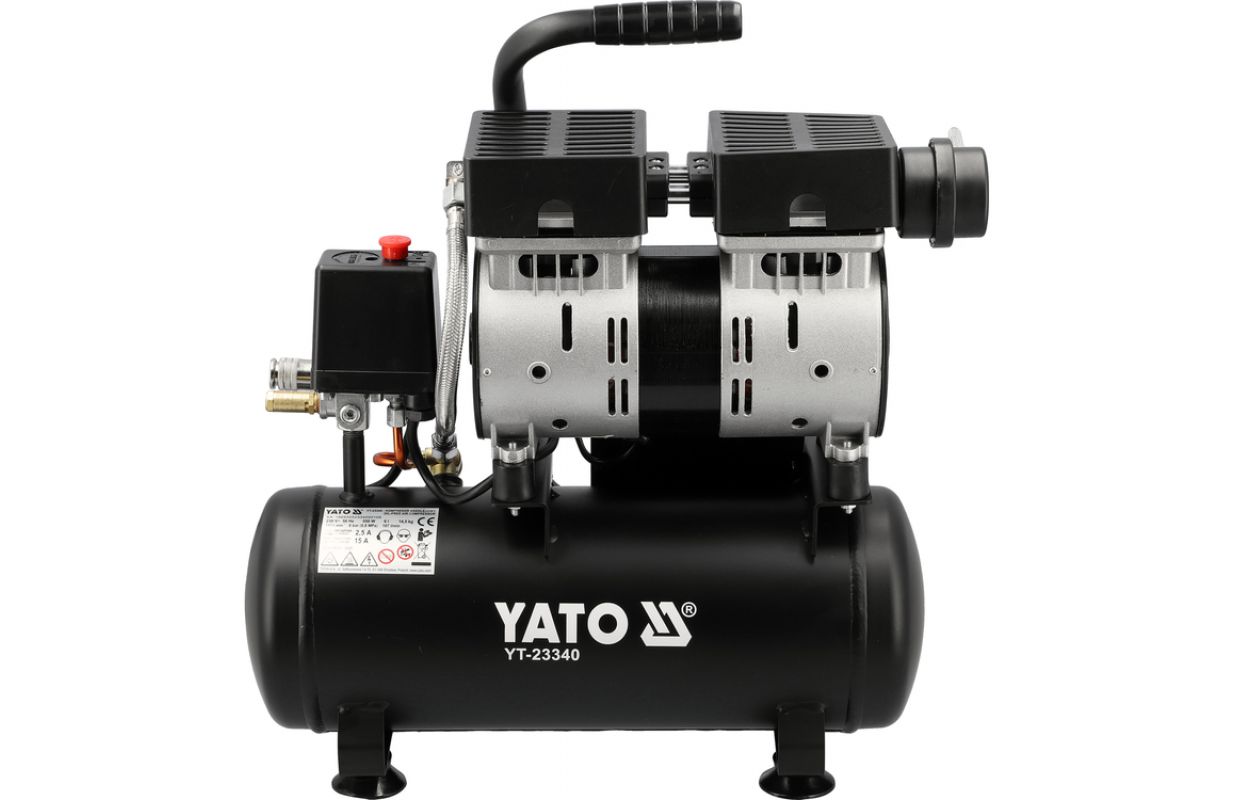

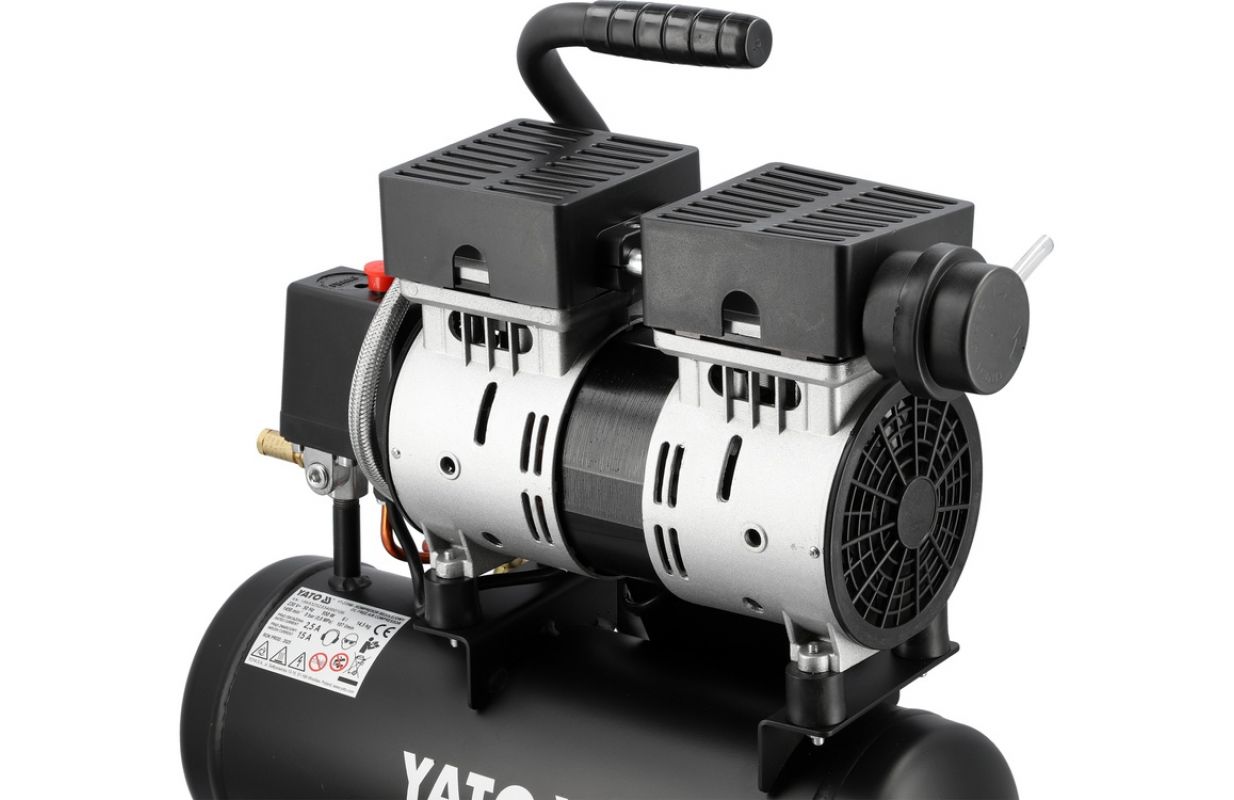

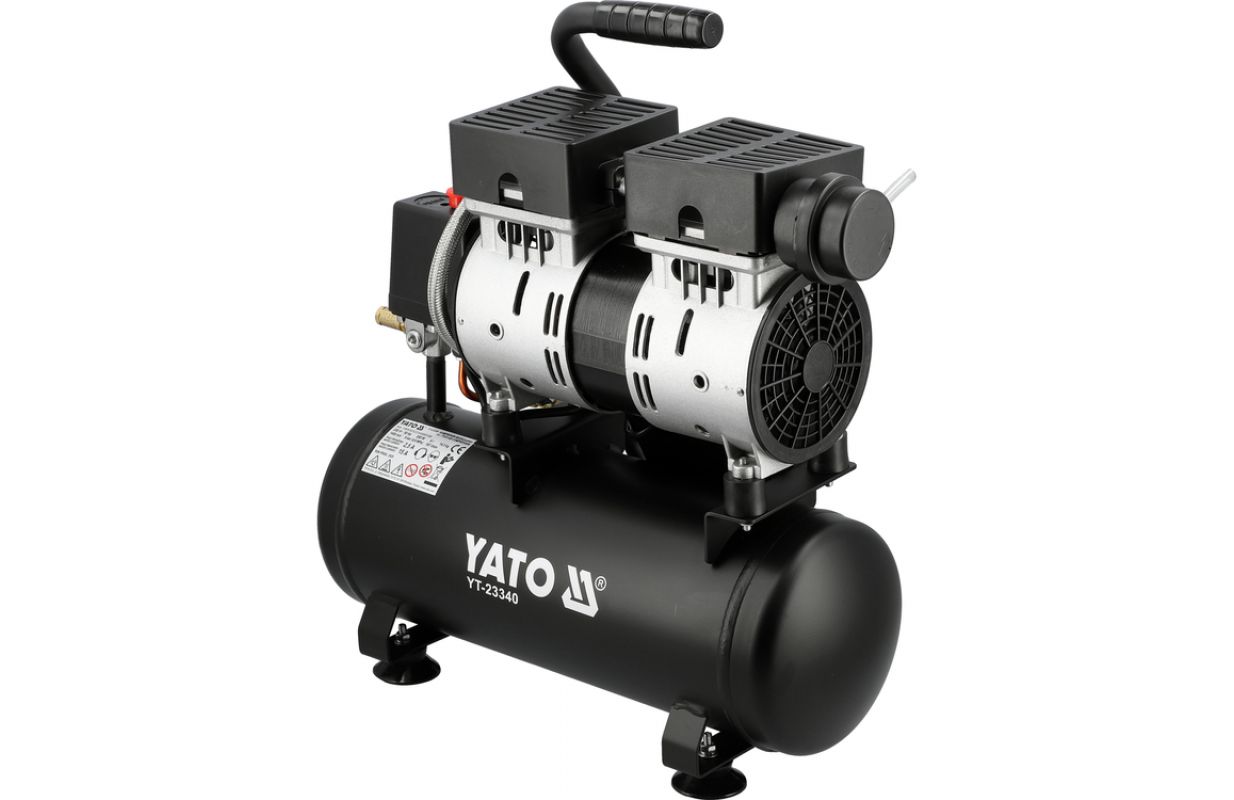

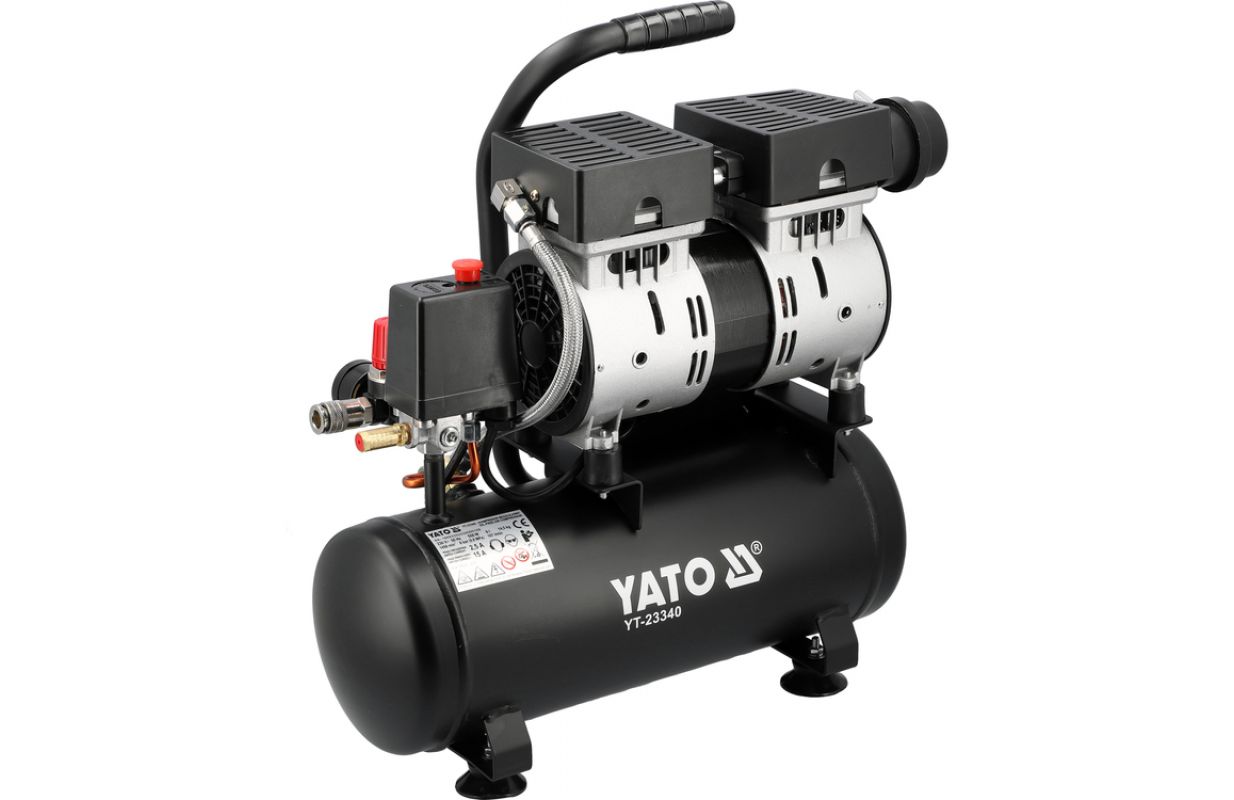

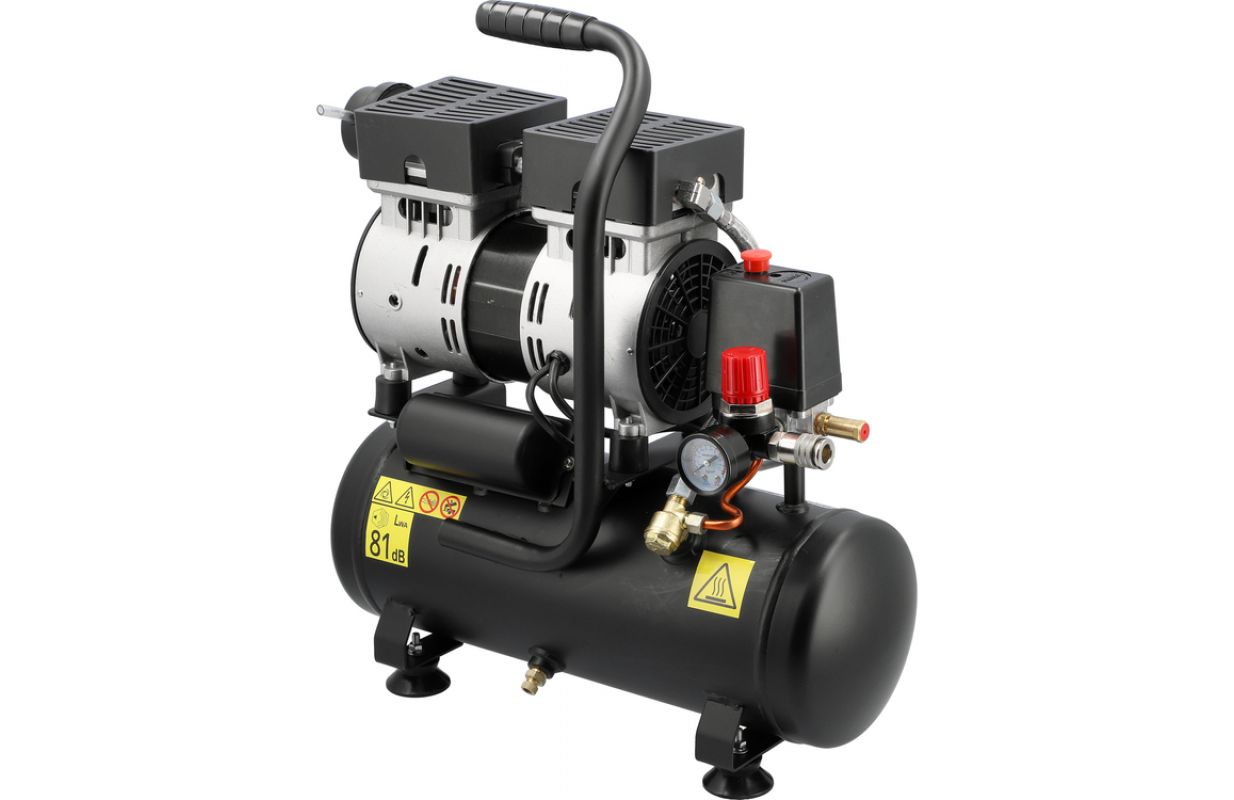

Oil-free compressor designed for light and medium tasks in workshops and service centers. The design is based on a maintenance-free piston system, eliminating the need for oil, thus keeping the compressed air clean and suitable for precision components, electronics, painting parts, or working with pneumatic tools with low consumption.
The device operates at a voltage of 230 V and a standard frequency of 50 Hz, allowing it to be plugged into a regular electrical outlet. The 550 W (0.75 HP) motor runs at a speed of 1450 min⁻¹, providing stable compression parameters and limited vibration levels. The 6-liter tank allows for convenient operation with breaks, and the quick filling (approximately 65 seconds) reduces waiting time between cycles.
The maximum working pressure of 8 bar (0.8 MPa) allows for use with popular pneumatic accessories – pneumatic guns, pumps, airbrushes, or wallpaper staplers. The compact design makes the equipment suitable for garages, mobile services, and home tasks.
Design features:
oil-free compressor – no oil replacement required
clean compressed air – suitable for precision and painting work
compact steel tank Ø160 × 440 mm (wall thickness 2.0 mm)
anti-vibration feet that limit vibration transfer
air filter protecting the mechanism from contamination
Functionality and maintenance:
pressure regulator allowing adjustment of parameters for the tool
pneumatic quick-connect fitting for immediate hose connection
manometer monitoring the pressure in the tank

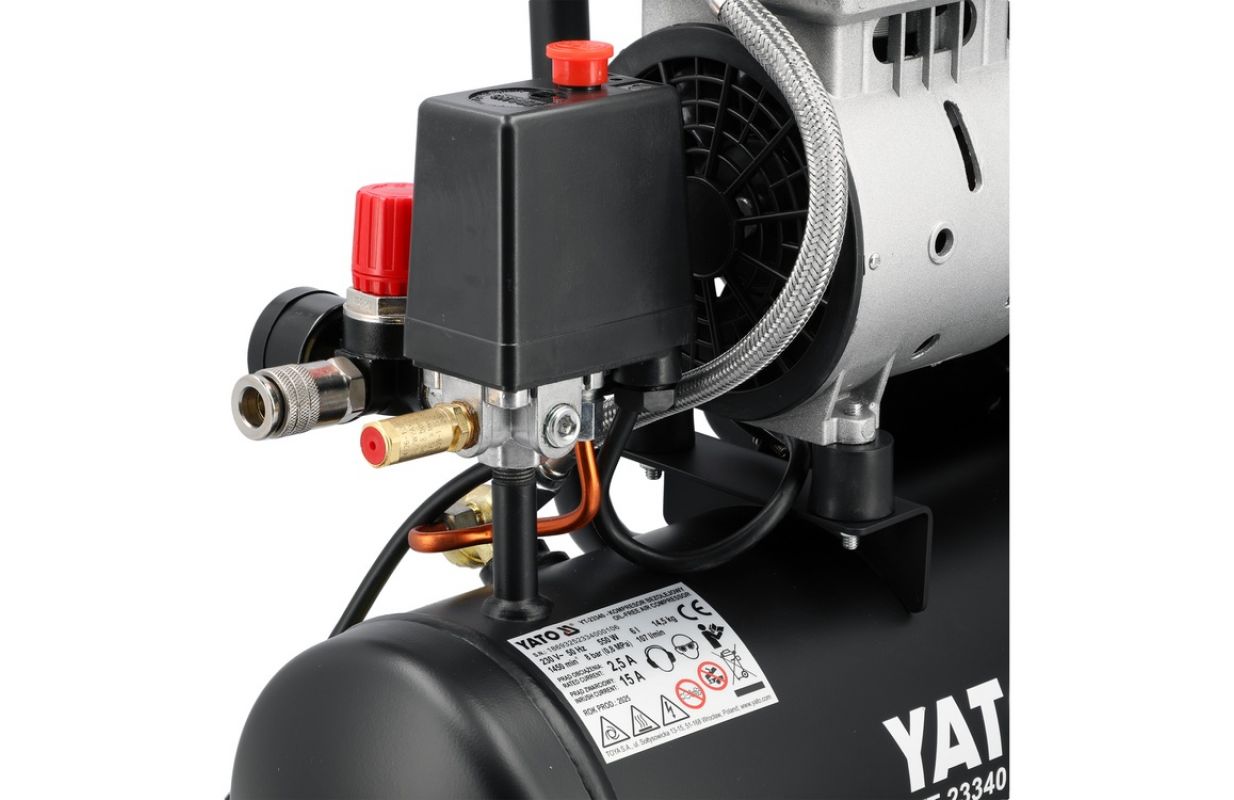

automatic pressure switch controlling the operation of the compressor
check valve stabilizing the compression system
safety valve protecting against overpressure
Technical parameters:
power supply: 230 V ~ 50 Hz
motor power: 550 W / 0.75 HP (0.55 kW)
number of revolutions: 1450 min⁻¹
maximum pressure: 8 bar / 115 PSI / 0.8 MPa
air flow: 107 l/min
tank filling time: approximately 65 seconds
tank volume: 6 L
Equipment:
pressure regulator
quick connection
manometer
safety valve
check valve
pressure switch
air filter
anti-vibration feet
