Data Logger TIGO CCA (Cloud Connect Advanced) Kit (344-00000-52)

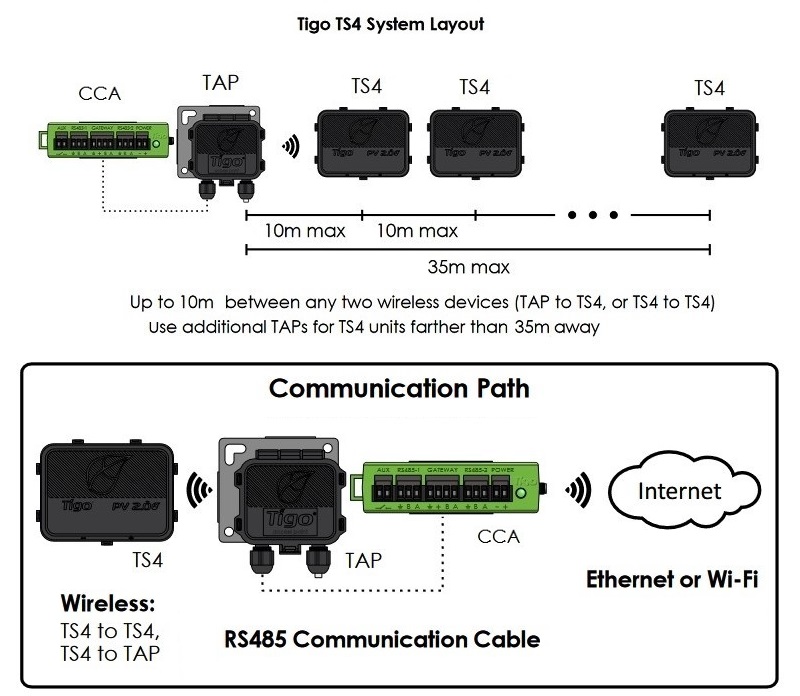

CCA is the data logger for your PV system devices (module optimizer, inverter, battery, building meters etc.) which enables valuable insight into module level performance data. As the communication hub of Tigo smart platform, it connects up to 900 TS4 units, acts as a data logger and rapid shutdown controller. It powers the monitoring and safety capabilities of smart solar modules.Set includes: CCA, TAP and power supply.Note: Required components for CCA: Tigo Access Point (TAP) and Tigo TS4 devices (TS4-A-O, TS4-A-S or TS4-A-M).Features: Includes the benefits of safety and monitoring.Meets NEC rapid shutdown requirements.Supports wireless and wired networks. Connects via an RS485 cable to the TAP, which communicates wirelessly with the TS4. Enables internet connection via Ethernet or Wi-Fi. Configure and commission with Tigo SMART app.Enables module level monitoring with the Tigo Energy intelligence platform when paired with the TAP.Monitor 3rd party devices via Modbus (AC meters, charge controllers, weather stations, wind or light sensors, etc.).Provides immediate access to system data for installers.Collect data from up to 900 TS4 units and 7 TAP devices.

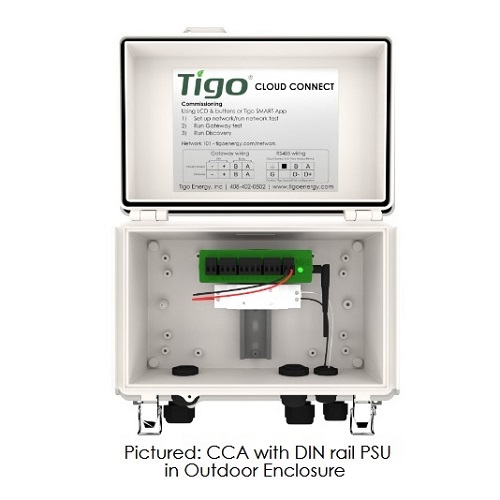

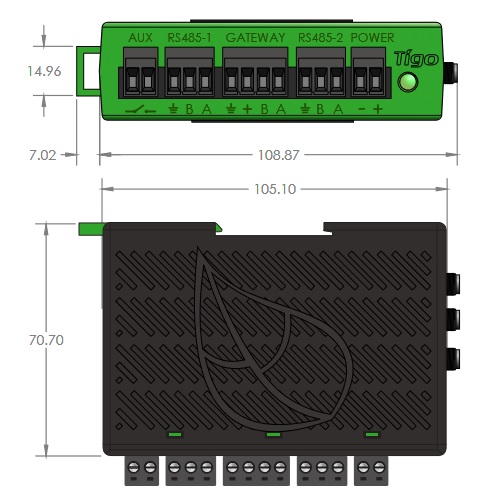

Specifications:Input voltage range: 10V-25V DC.Power supply voltage: 100V-240V AC.Consumption: 3W-7W.Application: Tigo SMART, Android, iOS.Connection: wireless with TS4 units, RS485 cable with TAP.Max TS4 units supported: 900.Max TAP units supported: 7.Rapid shutdown standards: NEC 2014, 2017 / NEC 690.12.LED indicators: yes.Installation: DIN rail mountable enclosure.Cooling: natural convection.Working temperature: -20°C ~ +70°C.Enclosure safety class: IP68, NEMA 4R.Weight CCA only: 126g.Dimensions: 31x115.51x71.54 mm.
Warranty: 24 months.
