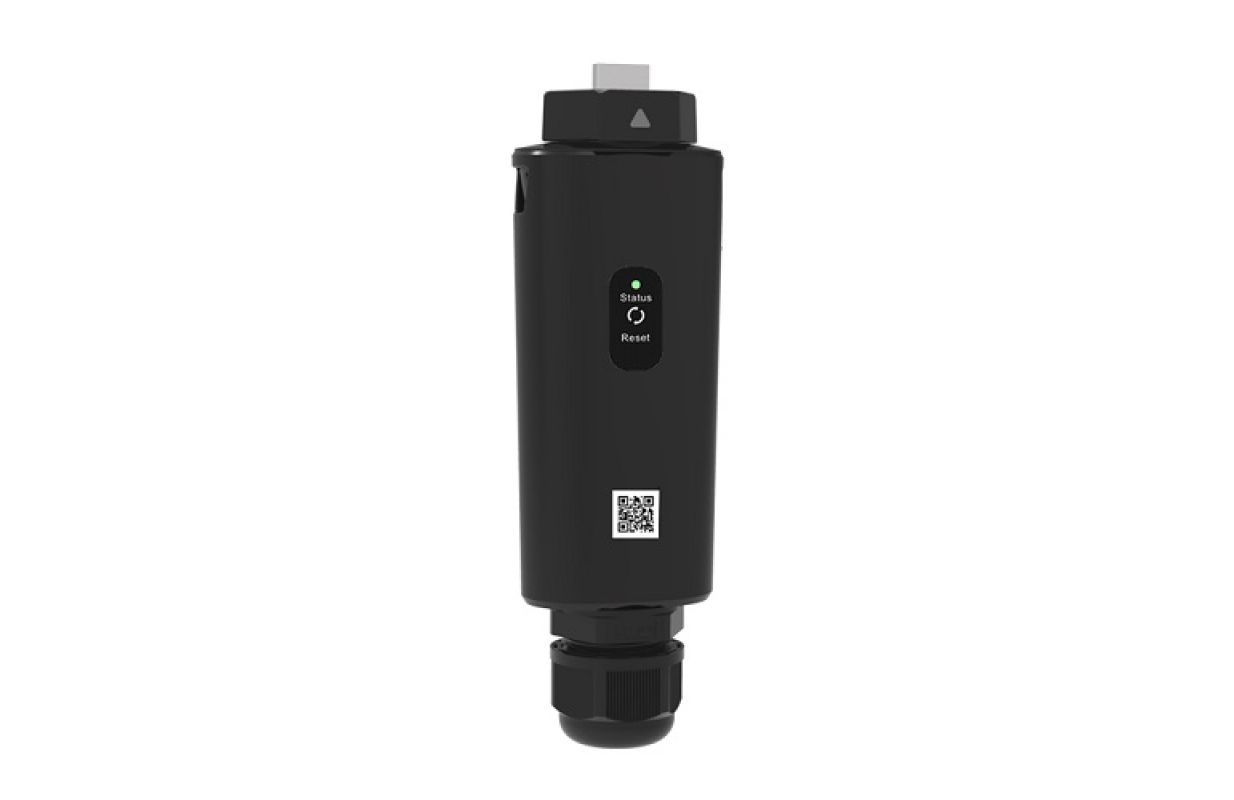

GROWATT Shine LAN-X Internet Interface (NV820320)

Growatt Internet Interface Shine LAN-X
Features: The interface is designed for connecting the parameters of the Growatt inverter to the cloud server via a local network and for monitoring the operation and energy production of the solar installation. The device connects to the solar inverter for remote detection and potential troubleshooting of the photovoltaic system. For cable routing in a suitable environment, connection to the local network is recommended. A USB key connects to the solar inverter, while an Ethernet cable connects to the router, after which the connection between the inverter and the server will be established automatically. The device has built-in memory, allowing it to store data from the connected inverter for 30-40 days, even if the internet connection is interrupted. It is suitable for all Growatt series X inverters (On grid - with an external power source).
Technical Data: Supported networks: LAN. Ethernet data transfer rate: 10 Mbps. Voltage: 5 V. Max. power consumption: 3 W. Interface: USB Type-A. Supported server: ShineServer (server-cn.growatt.com). Data transmission interval: 5 min. Operating temperature: -30°C ~ +60°C. Safety class: IP65. Dimensions: 152x47x28 mm. Weight: 84 g. CE, RoHS.
Warranty: 12 months.
